Edwards GV Series Dry Claw Vacuum Pumps

Models: GV110, GV80, Drystar® GV80/EH500 | Manufacturer: Edwards

The Edwards GV Series includes dry-claw vacuum pumps designed for demanding industrial applications that require clean, consistent vacuum performance. The range combines the proven GV80 with the next-generation GV110 and Drystar® GV80/EH500 configured packages. These systems provide oil-free pumping, high tolerance for process dust and particles, and reliable operation with large volumes of condensable vapours.

Edwards GV Series Vacuum Pump Range

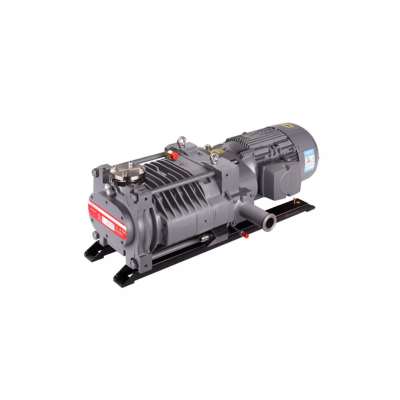

GV80 Dry Vacuum Pump
A proven dry claw vacuum pump designed for continuous operation, large volumes of condensable vapours, clean pumping, and consistent performance with minimal service disruption.

GV110 Dry Vacuum Pump
The next-generation industrial dry claw pump adds an integrated variable speed drive, modern acoustic enclosure, and improved pumping performance to the proven GV80 platform.

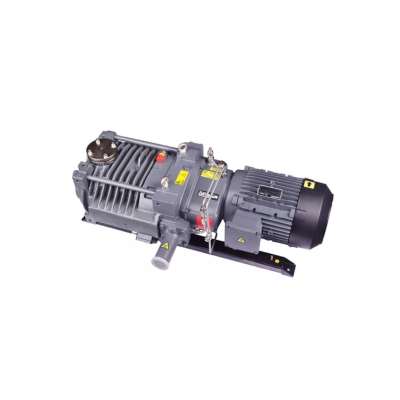

Drystar® GV80/EH500 Booster Package
A pre-configured GV80 system combined with the EH500 hydrokinetic drive mechanical booster provides increased pumping speed and improved performance at lower vacuum levels.

GV Series Technical Specifications

Specification	GV110	GV80	Drystar® GV80/EH500
Peak Speed @ 50 Hz	110 m³/hr (64.7 cfm)	80 m³/hr (47 cfm)	390 m³/hr (230 cfm)
Peak Speed @ 60 Hz	—	94 m³/hr (56 cfm)	471 m³/hr (277 cfm)
Ultimate Pressure	6 × 10⁻³ mbar	<3 × 10⁻² mbar	<3 × 10⁻² mbar
Inlet Connection	ISO40	ISO40	ISO100
Exhaust Connection	NW40	NW40	NW40
Cooling	Water	Water	Water/Air
Cooling Water Flow	5 l/min	8 l/min	8 l/min
Noise Level (w/ Silencer)	<75 dB(A)	<78 dB(A)	<78 dB(A)
Weight	210 kg	165 kg	240 kg
Lubrication Volume	0.4 L	0.4 L	1.4 L

GV Series Design and Features

GV110 Dry Claw Vacuum Pump

Next-generation dry claw vacuum pump design for industrial applications

Integrated variable speed drive provides flexible pump speed control

Water-cooled design supports continuous industrial operation

Stainless steel claws and coated chambers provide process compatibility

Acoustic enclosure helps maintain noise levels below 75 dB(A)

GV80 Dry Claw Vacuum Pump

Proven dry-claw technology provides clean, oil-free vacuum pumping

Designed to handle large volumes of condensable vapours

High tolerance to process dust and particles supports demanding applications

Available with hydrocarbon or PFPE lubrication options

Available in pump-only configurations for industrial vacuum systems

Drystar® GV80/EH500 Booster Package

Combines the GV80 dry claw pump with an EH500 mechanical booster

EH500 provides increased pumping speed for suitable applications

Booster configuration improves performance at lower vacuum levels

Pre-configured package simplifies installation and system integration

Available with water/air cooling and a 1.4 L lubrication volume

GV Series Applications

Backing Pump for High Vacuum Applications

Flat Panel Display Manufacturing

Gas Cylinder Evacuation

Heat Treatment

Pharmaceutical Freeze Drying

Research and Development

Refrigeration and Air Conditioning

System Evacuation

Drying and Backfilling

Surface Treatment

Thin Film Coating Technologies

Vacuum Drying and Distillation

Vacuum Metallurgy Processes

GV Series Package Options

Product	Configuration	Key Capability
GV110	Dry claw vacuum pump	110 m³/h peak pumping speed at 68 Hz
GV80	Dry claw vacuum pump	82 m³/h at 50 Hz and 94 m³/h at 60 Hz
Drystar® GV80/EH500	GV80 with EH500 booster	390 m³/h at 50 Hz and 471 m³/h at 60 Hz

The Drystar® GV80/EH500 package is engineered as a pre-configured system and can be supplied with the EH500 booster for increased pumping speed and improved performance at lower vacuum levels.

Get the Edwards GV Series

ACFM supplies Edwards GV Series dry claw vacuum pumps for industrial vacuum applications. Contact our team for product information, availability, and assistance selecting the appropriate GV Series configuration for your requirements.
